DESCRIPTION of 9 x 16 Satellite & Terrestrial Multiswitch

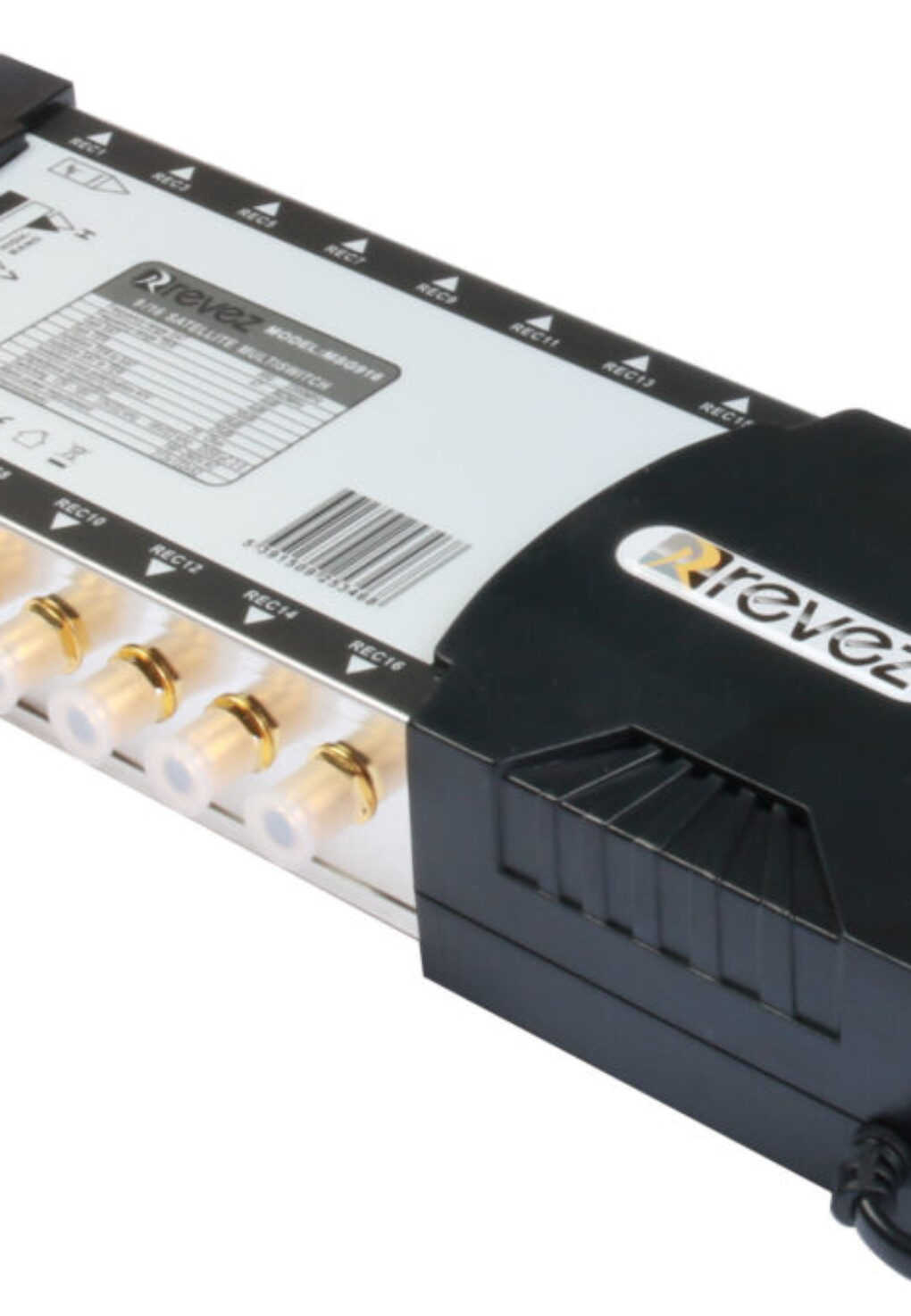

REVEZ 9 x 16 Multiswitch
Inputs: 9
Horizontal High (22 KHz)
Horizontal low
Vertical High (22 KHz)
Vertical Low
Terrestrial
Outputs: 16 satellite & terrestrial feeds
Frequencies:
Frequency Range: 47 ~ 2200 MHz
Attenuation: 0 dB (Sat), 16 dB (Terr)
Isolation: 30 dB (Sat)
Output Level (Terr): max. 95 dBµV
Output Level (Sat): max. 95 dBµV
Power Supply: 230V 50Hz
DC Voltage: 13V / 18V
DC Power (LNB): 1A (max)
DC Power (12V): Ʃ 300mA (max)
Note: Always used with Quattro LNB
Used extensively in
Hotels
Apartment blocks
Retirement villages
HOW the 9 x 16 Satellite & Terrestrial MultiSwitch Works
Quattro Vs Traditional LNB
Traditional LNB which simply feeds a Satellite receiver from each output
Quattro LNB splits the satellite signal into
Vertical (High & Low)
Horizontal (High & Low)
This allows the signal to to feed to an infinite amount of Satellite points
How a Quattro LNB and Multiswitch work
Used in conjunction with a Quattro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into
Vertical (High & Low)
Horizontal (High & Low)
Multiswitch inputs:
Satellite: 8 from 2x satellite quattro LNBs
Terresttial: a single feed covering full VHF / UHF Spectrum
Multiswitch range:
Outputs: 8, 16 or 32 outputs to Satellite receivers
At the TV Point:
Use a Faceplate to split the signal into Satellite and terrestrial
9×16 Satellite & Terrestrial Multiswitch (REVEZ)
Professional multiswitch to distribute 2x satellite & terrestrial signal to 16 TV points
