Revez 5 x 32 Satellite & Terrestrial Multiswitch

Description

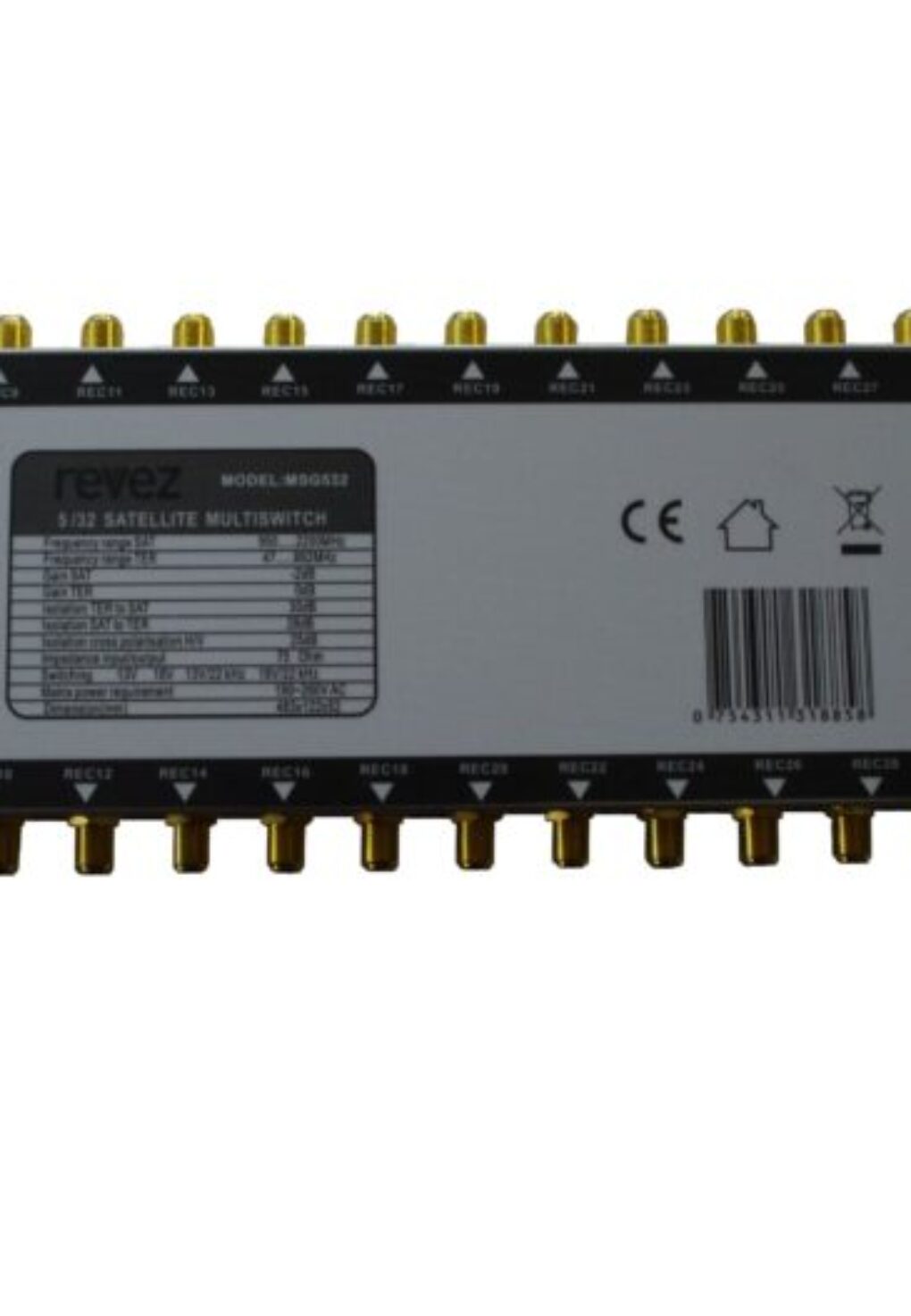

DESCRIPTION of 5 x 32 Satellite & Terrestrial Multiswitch

• Revez Pro Series Multiswitch
• Model: MSG32
• Inputs: 5
  • Horizontal High (22 KHz)
  • Horizontal low
  • Vertical High  (22 KHz)
  • Vertical Low
  • Terrestrial
• Outputs: 32 feeds (satellite & terrestrial)
• Compatible with SKY Digiboxes

Frequencies:

• Terrestrial: 47 – 862 MHz
• Satellite: 950 – 2300 MHz
• Colour: White/Black
• Manufacturer: Revez
• Model: MSG532
• Connector type: F-type Connectors (Gold plated)

Note: Always used with Quattro LNB

Used extensively in

• Hotels
• Apartment blocks
• Retirement villages

HOW the 5 x 32 Satellite & Terrestrial MultiSwitch Works

Quattro Vs Traditional LNB

• Traditional LNB which simply feeds a Satellite receiver from each output
• Quattro LNB splits the satellite signal into
  • Vertical (High & Low)
  • Horizontal (High & Low)
• This allows the signal to to feed to an infinite amount of Satellite points

How a Quattro LNB and Multiswitch work

• Used in conjunction with a Quattro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into
  • Vertical (High & Low)
  • Horizontal (High & Low)
• Multiswitch inputs:
  • Satellite: 4 from satellite quattro LNB satellite
  • Terresttial: a single feed covering full VHF / UHF Spectrum
• Multiswitch range:
  • Outputs: 8, 12, 16 or 32 outputs to Satellite receivers
• At the TV Point:
  • Use a Faceplate to split the signal into Satellite and terrestrial
